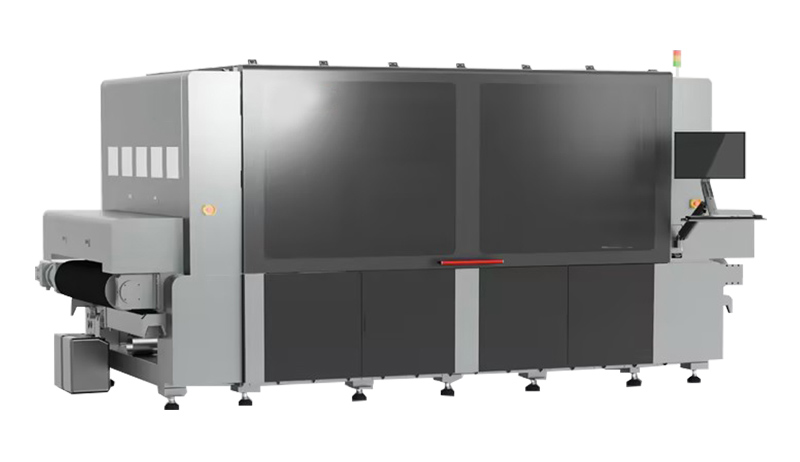

Single Pass Wide Format High Speed UV Inkjet Printer
Technical Parameters
| Nozzle brand | Kyocera |
| Number of nozzles | 110 (optional) |
| Resolution | 1200*1200dpi |
| Printing speed | 50meters/min |
| Print mode | single pass |
| Sheet width | 712-1200mm |
| Print width | 1177mm |
| Sheet length | 508-965mm |
| Range of sheet thickness | 0.15-0.5mm |
| Applicable medium | Metal sheets |
| Ink type | Eco-friendly UV-curable ink (VOC-free) |
| Ink color | C, M, Y, K+W |
| File formats | PDF, JPEG, TIFF, EPS, AI, etc. |
| Dimensions (L x W x H) | 4800*2600*2470mm |
| Weight | 7800Kg |
| Power | 29.5 kW(max current 53A) |
| Voltage | 380VAC, 50Hz, 3-phase L/N/PE |
| Software | Caldera, ONYX |
| Ink curing | LED (adjustable power) |
| Transfer mode | High-speed PCIe |
| Working environment | Clean, dust-free, low-light, well-ventilated Temperature: 18–30℃; Humidity: 30–70% |
